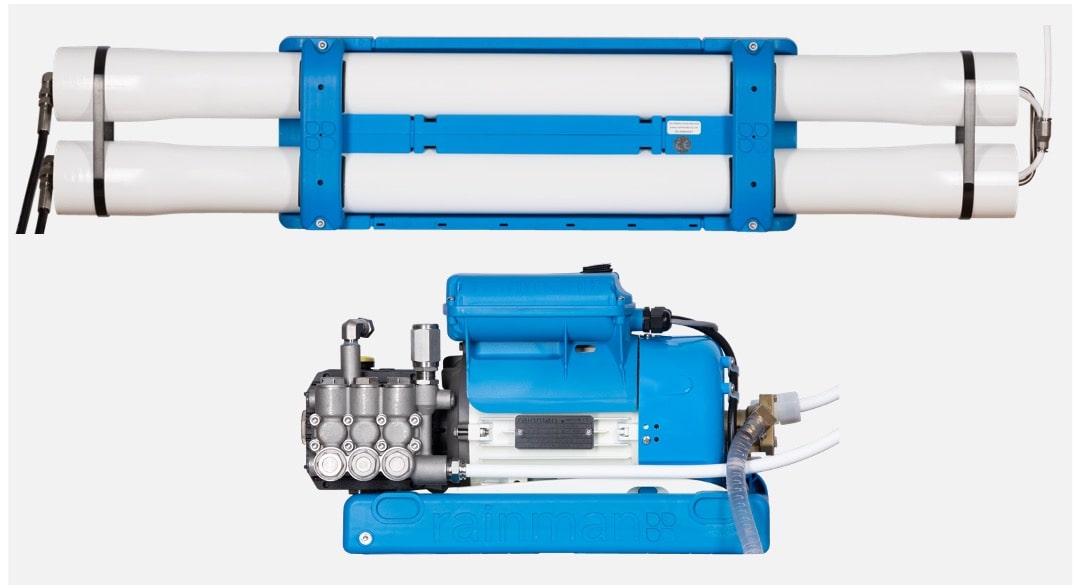

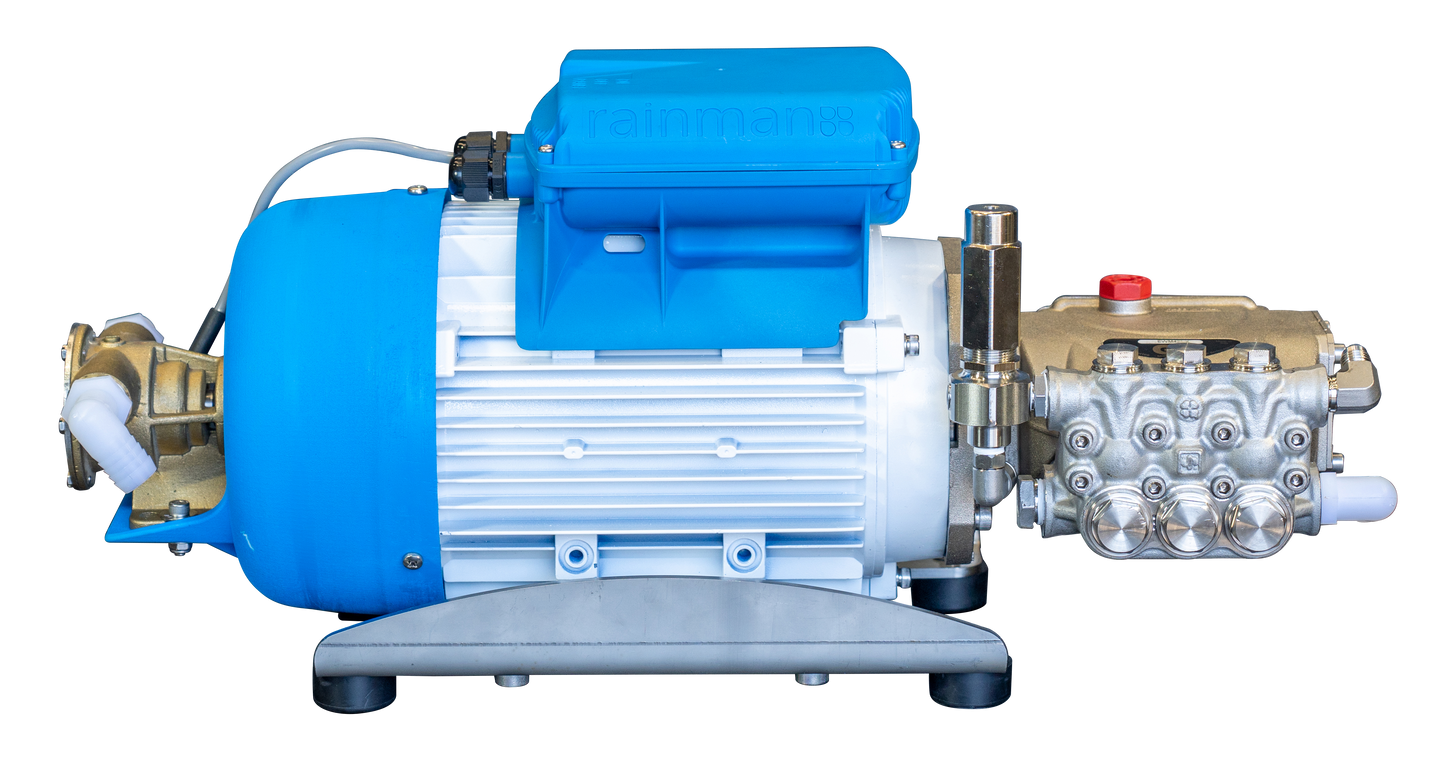

Rainman Modular-AC-140L

CALL FOR PRICE & AVAILABILITY

(251)980-2253

Features common to both Portable and Modular versions
1.5 HP totally enclosed fan cooled (TEFC) induction motor
1250 watts steady state power consumption
Current draw 6 amps (230VAC) or 12 amps (115VAC)
Power cord length: 3 metres (10 ft)
Plug type choices: US (NEMA 5-15), Australian (AS/NZS 3112), UK (BS 1363), Europe (CEE 7/7)
Integrated flexible impeller lift pump uses non-proprietary impeller
2 metre (6 ft) maximum lift above sea level
General Pump WMR 316 stainless steel high pressure triplex plungerpump
Integrated General Pump 316SS/ceramic relief valve to prevent overpressurisation
3 metre (10 ft) LDPE food grade product water hose, with 10 metre (33 ft) extension (8mm OD)
Sound levels – 62dB at 6 metres (20 ft) – see chart

Modular version specific features

No shell

PSU easy mounting kit: fibreglass reinforced nylon for high rigidity and tensile strength

RO easy mounting kit: fibreglass reinforced nylon for high rigidity and tensile strength

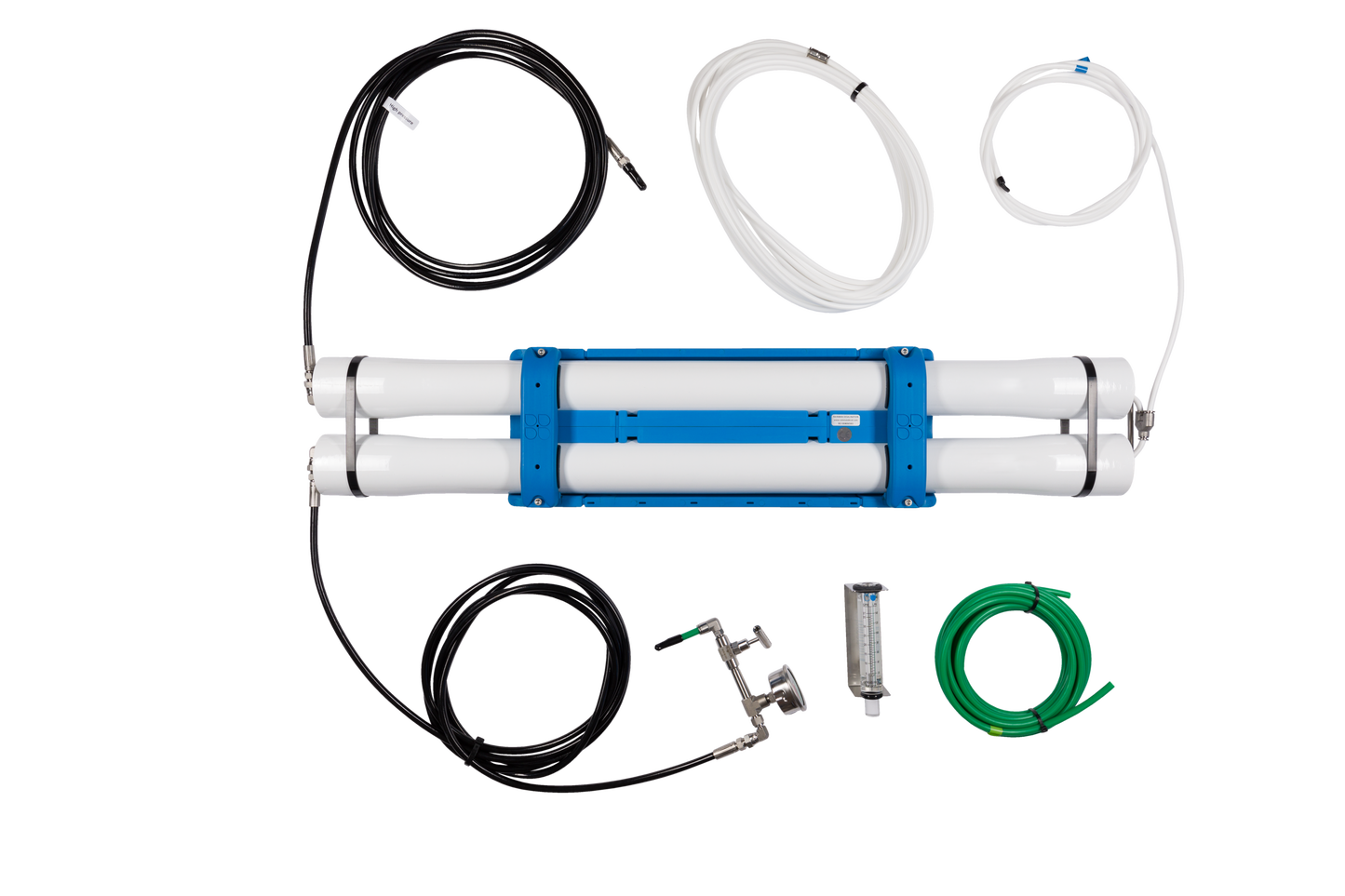

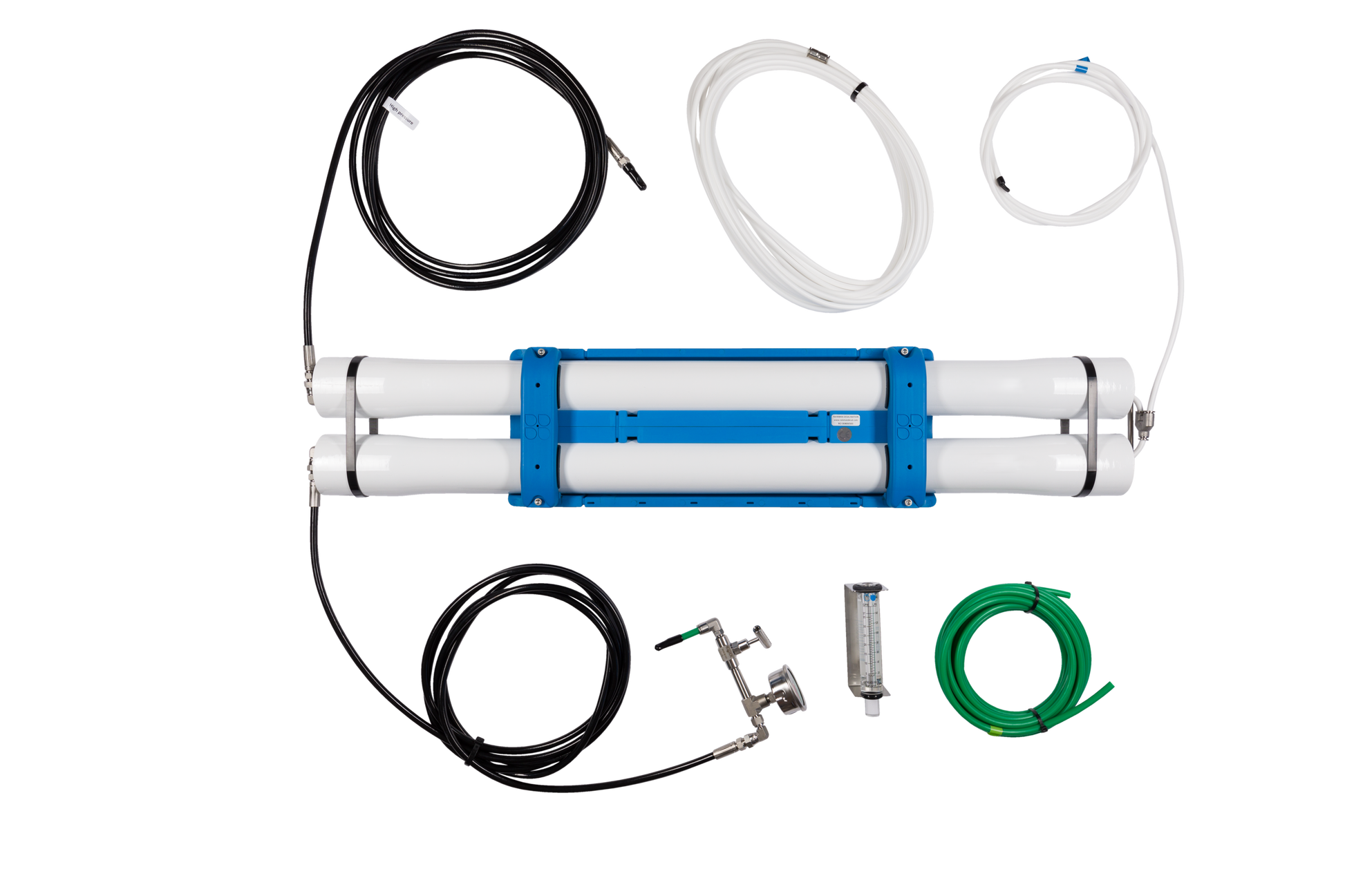

Plumbing installation kit included with purchase

Single 10″ x 2.5″ non-proprietary 5 micron prefilter to remove sediment with SS316 mounting bracket

0 – 150lph (40gph) product water flow meter, with SS316 mounting bracket

Valve/gauge control assembly at end of 5 metre (16 ft) high pressure hose for remote mounting

5 metre (16 ft) intake hose (1/2″ ID)

6 metre (20 ft) brine waste discharge hose (10mm OD)

PSU weight: 23kg (51lb)

PSU Dimensions: 470 x 270 x 240mm (18.5 x 10.7 x 9.5″)

Related RO weight
– High Output: 22kg (49lb)
– Compact: 13kg (29lb)
– Economy: 10kg (22lb)

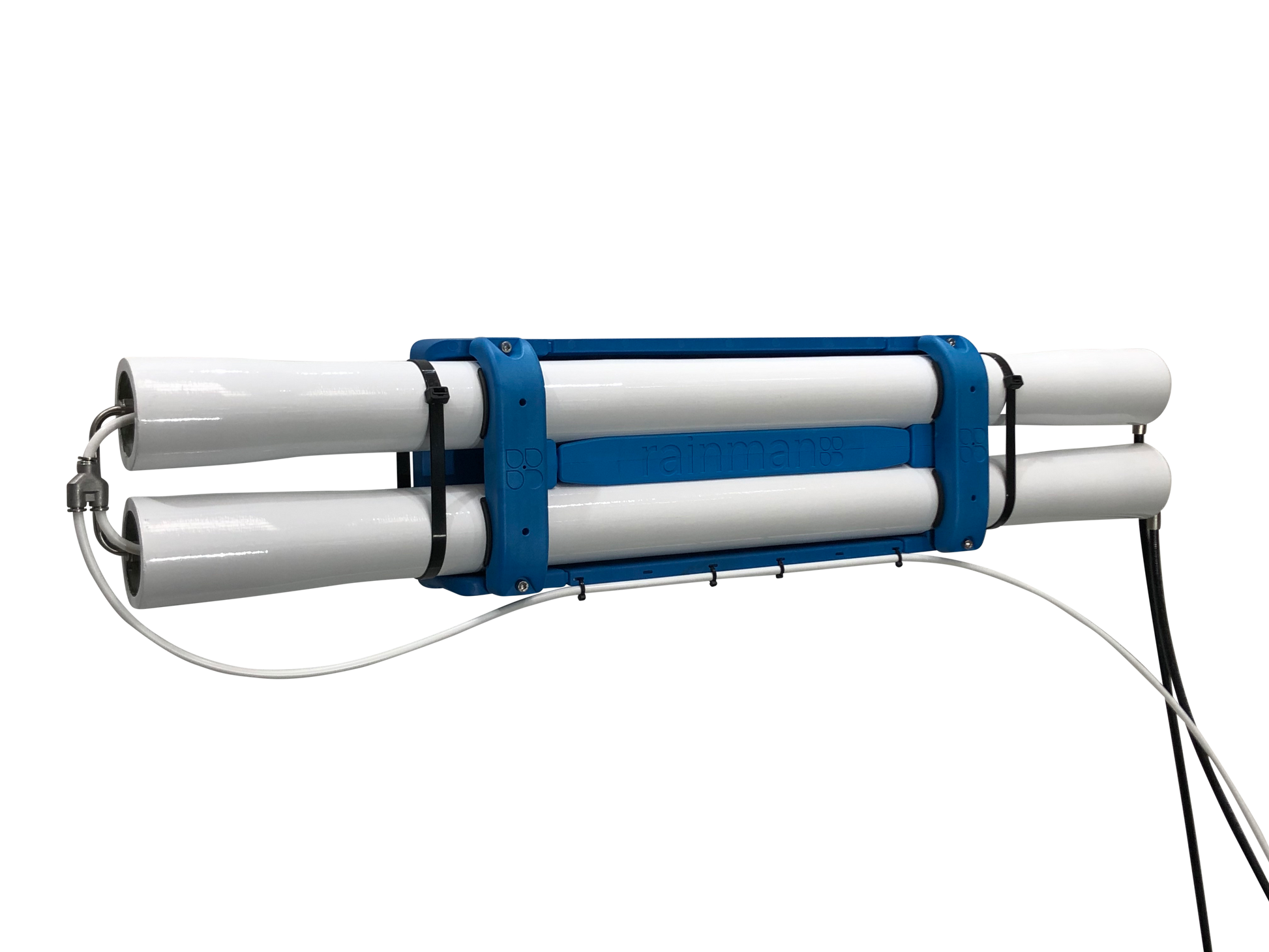

Related RO dimensions (in mounting brackets)
– High Output: 1,170 x 220 x 120mm (46.0 x 8.7 x 4.7″)
– Compact: 670 x 220 x 120mm (26.4 x 8.7 x 4.7″)
– Economy: 1,170 x 220 x 120mm (46.0 x 8.7 x 4.7″)

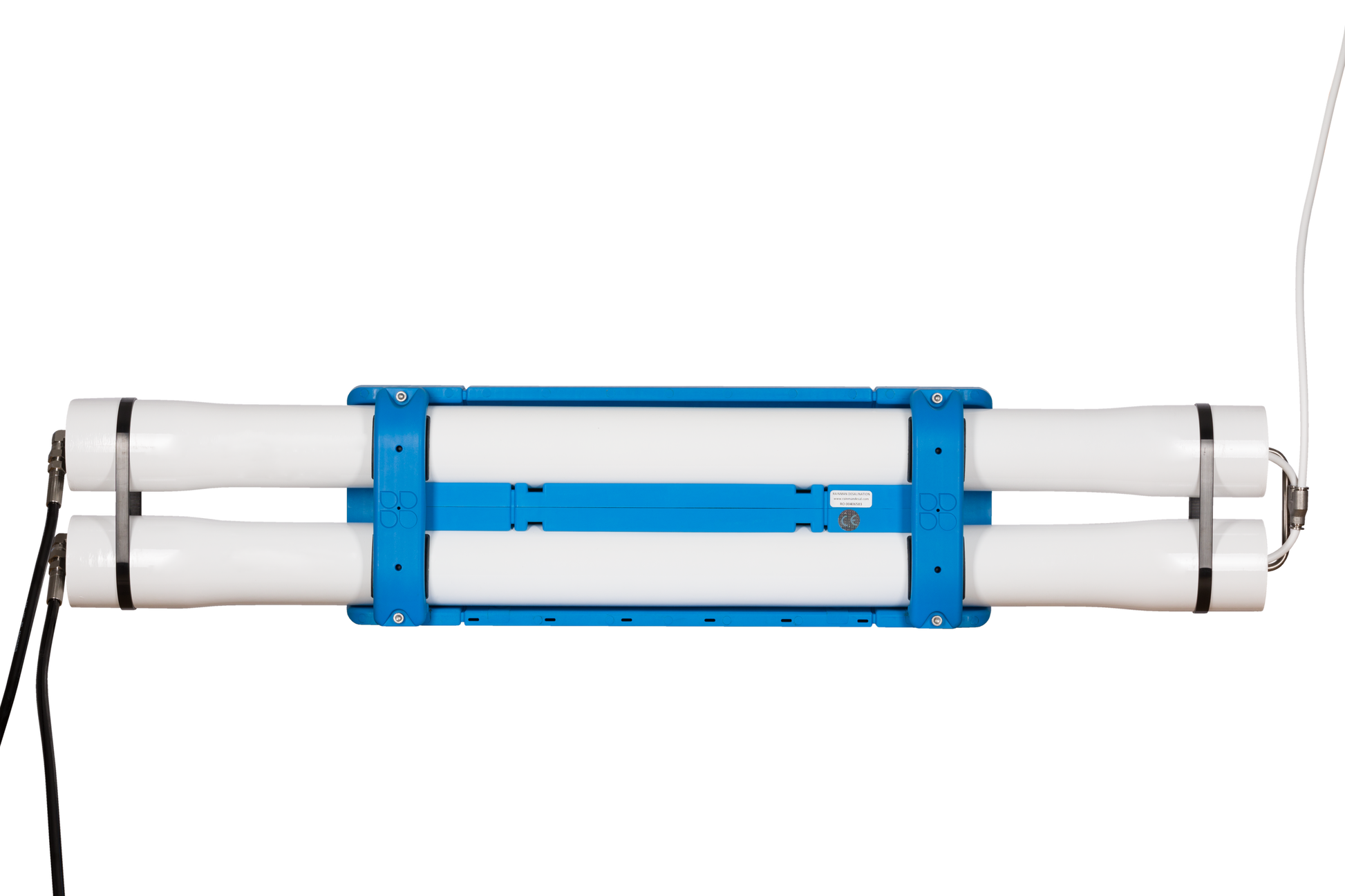

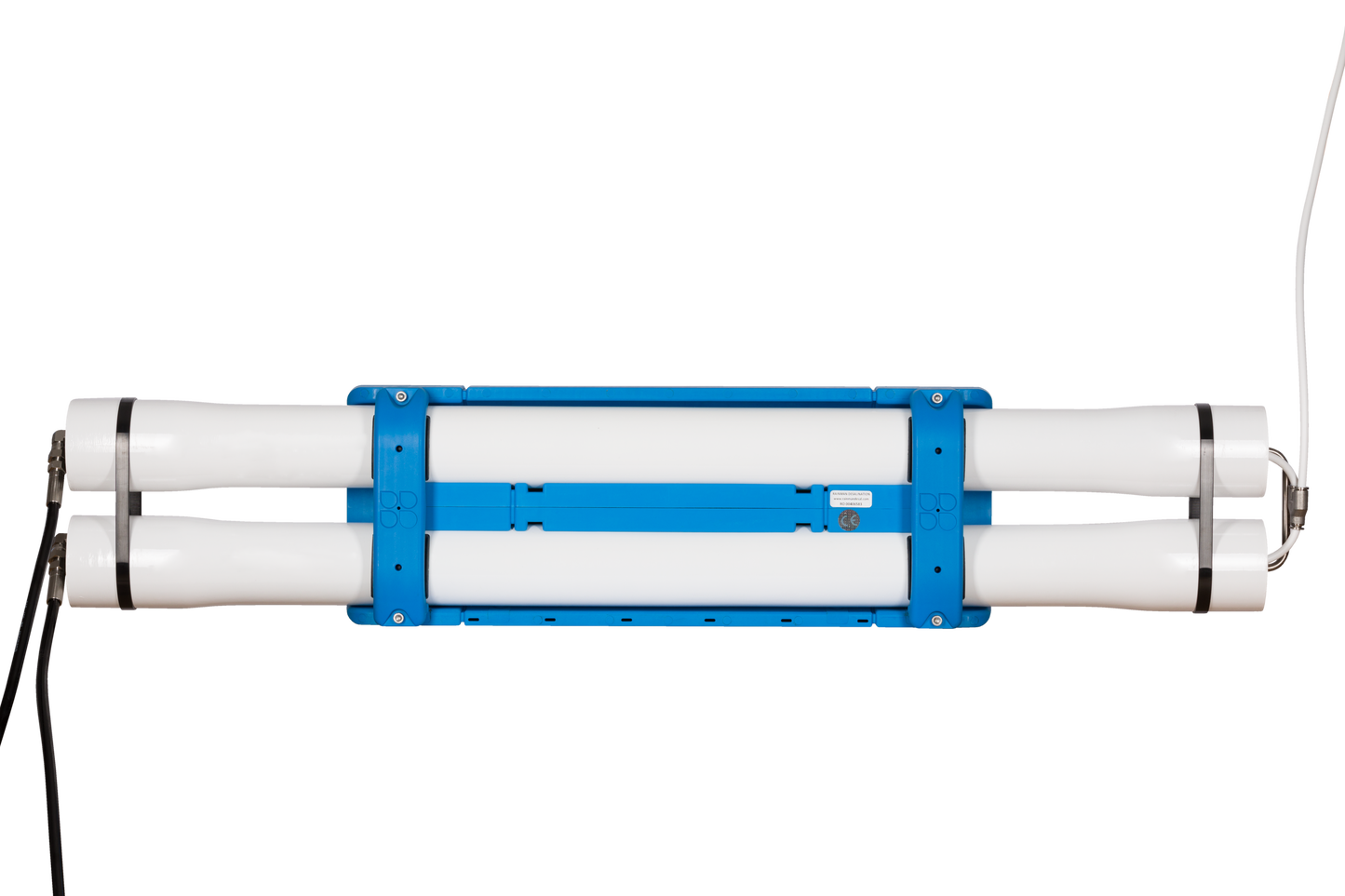

High Output

100-140 lph (26-37gph)
