Rainman Portable-24VDC-55L
Rainman Portable-24VDC-55L
CALL FOR PRICE & AVAILABILITY
(251)980-2253
| 1.5 HP totally enclosed fan cooled (TEFC) induction motor | |
| 1250 watts steady state power consumption | |
| Current draw 6 amps (230VAC) or 12 amps (115VAC) | |
| Power cord length: 3 metres (10 ft) | |
| Plug type choices: US (NEMA 5-15), Australian (AS/NZS 3112), UK (BS 1363), Europe (CEE 7/7) | |
| Integrated flexible impeller lift pump uses non-proprietary impeller | |
| 2 metre (6 ft) maximum lift above sea level | |
| General Pump WMR 316 stainless steel high pressure triplex plungerpump | |
| Integrated General Pump 316SS/ceramic relief valve to prevent overpressurisation | |
| 3 metre (10 ft) LDPE food grade product water hose, with 10 metre (33 ft) extension (8mm OD) | |
| Sound levels – 62dB at 6 metres (20 ft) – see chart |
|
Portable version specific features |
|
|
Case of sturdy injection moulded polypropylene |
|
|
PSU storage/mounting seat: fibreglass reinforced nylon with strap |
|
|

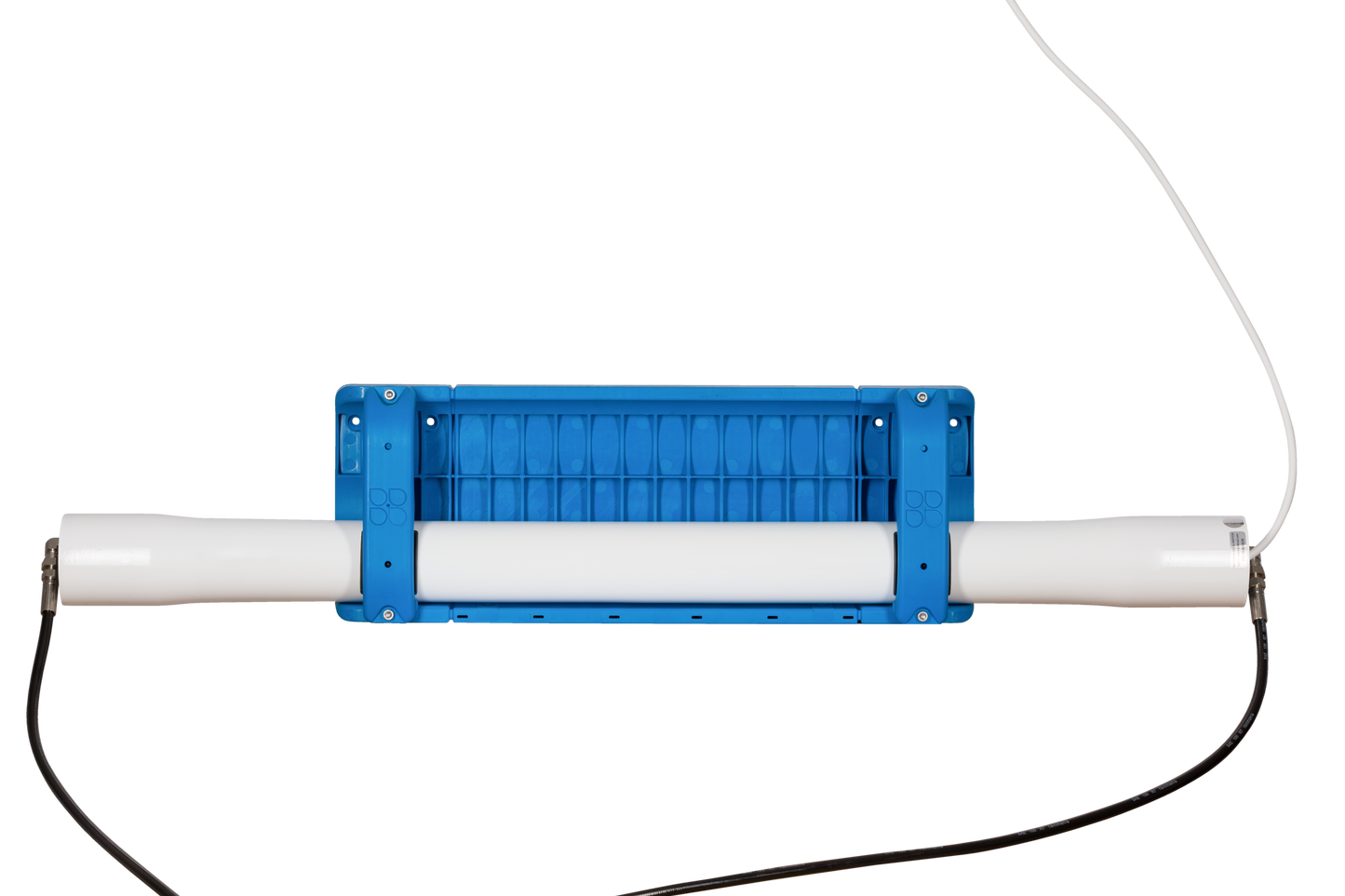

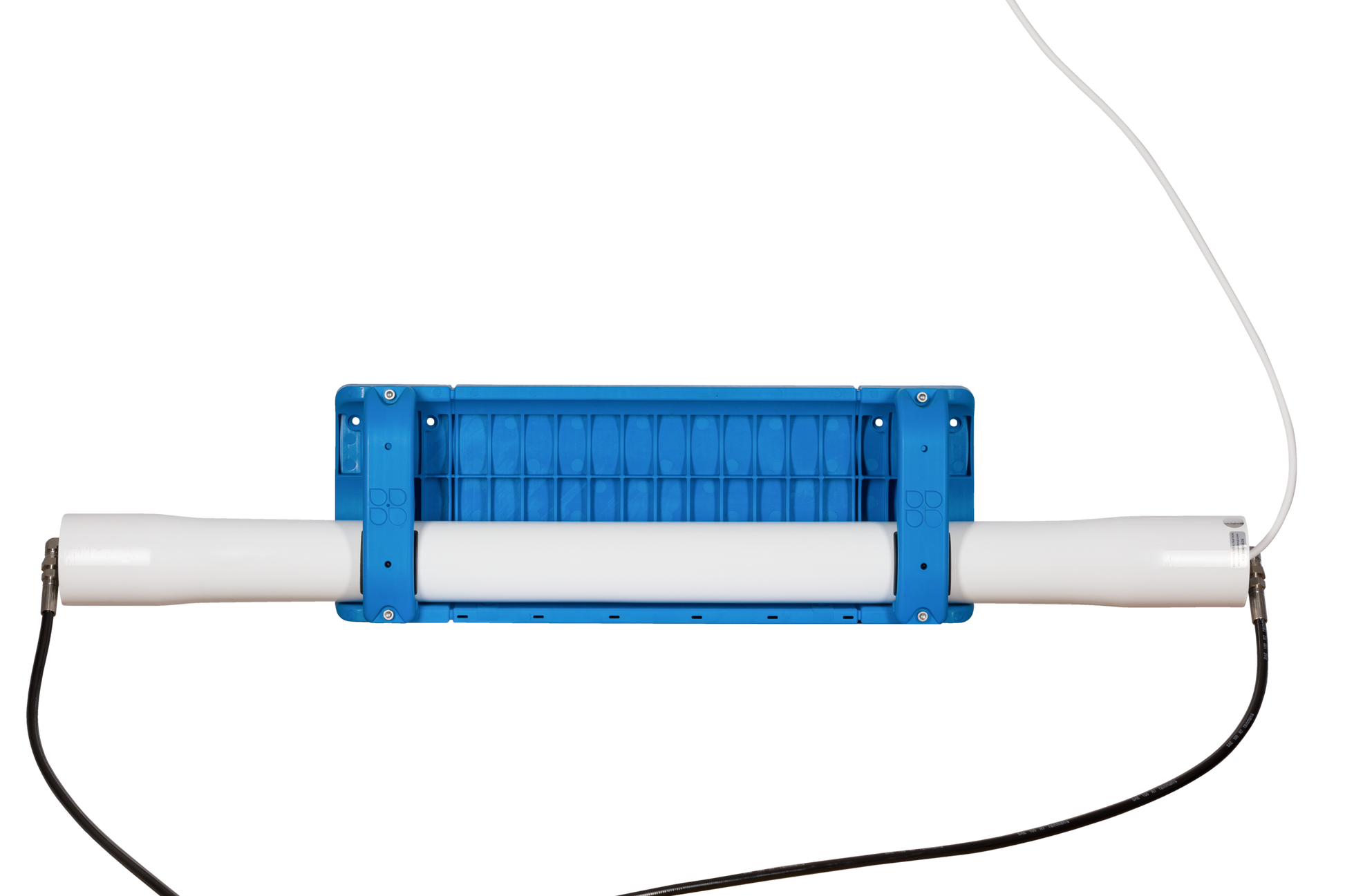

RO Case (mountable if desired): rotomoulded polyethylene |
|
|
Plumbing installation kit at extra cost |
|
|
Single 10″ x 2.5″ non-proprietary 5 micron prefilter to remove sediment mounted on PSU |
|
|
0 – 40 lph (11 gph) product water flow meter, integrated in to RO case |
|
|
Valve/gauge control assembly integrated into RO case |
|
|
5 metre (16 ft) intake hose fitted with one way valve to remain primed, with detachable strainer |
|
|
3 metre (10 ft) brine waste discharge hose |
|
|
PSU weight: 24kg (53lb) |
|
|
PSU Dimensions: 600 x 375 x 270mm (23.6 x 14.8 x 10.6″) |
|
|
Related RO weight |
|
|
Related RO dimensions |
|
